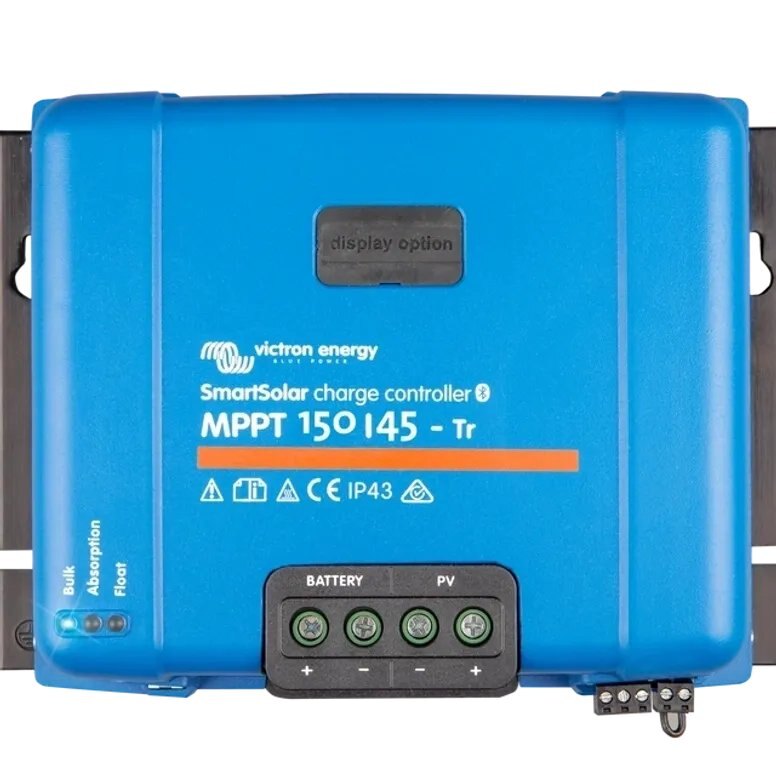

Overview
  • Ultra-fast Maximum Power Point Tracking
  • Advanced Maximum Power Point Detection in case of partial shading conditions
  • Outstanding conversion efficiency
  • Built-in Bluetooth, program and view solar array data from your smartphone or tablet
  • Internal temperature sensor
  • Intelligent battery management
  • Programmable battery charge algorithm
  • Day/night timing and light dimming option
  • Programming, real-time data and history display options
  • Optional: pluggable LCD display
  • Battery voltage: 12, 24, 48 Volts DC (36VDC can be set up with software tool)
  • Rated charge current: 45 Amps
  • Max. PV short circuit current: 50 Amps
  • Maximum PV open circuit voltage: 150 Volts
  • Maximum wire size: #2 AWG
  • Weight: 6.61 lbs (3 kg)
  • Dimensions (inches / millimeters): 7.28" x 9.84" x 3.74" / 185 x 250 x 95 mm
  • 5 Year Warranty

Documents

  • 5.pdf

    5.pdf
